CABLE BELT CONVEYORS

What is a Cable Belt Conveyor System?

Most people are familiar with conventional conveyor systems where the belt moves along idler rollers. In this system the belt is the carrying medium and also has the driving force applied to it.

Cable Belt Conveyor System

In a cable belt conveyor system the driving and carrying mechanisms are separated. The driving forces are provided by two steel wire ropes (cables) and the material carrying medium is a rubber conveyor belt.

These ropes are supported by grooved pulleys at regular intervals along each length. The belt rests on the ropes and is retained thereon by of two pairs of "shoeforms". Each shoeform has two triangular legs, which together form a vee shaped groove, this engages and grips the underlying rope. The belt has carry shoeforms moulded along the bottom cover and return shoeforms moulded along each edge of the top cover.

Cable Belt Conveyor System carrying coal

video: System Monitoring in QLD, Australia.

Cable Belt Conveyor - Products & Services

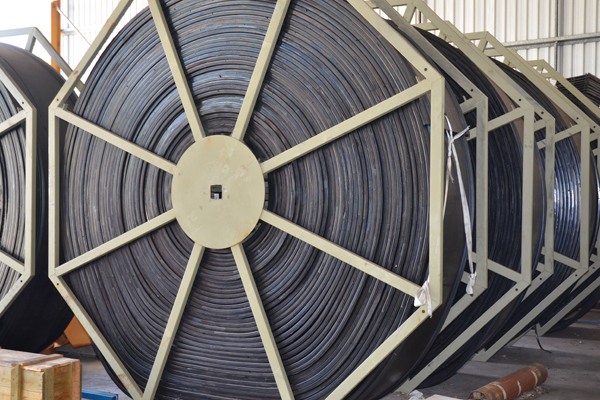

cable belt conveyor belting

Conveyor Belting

Products

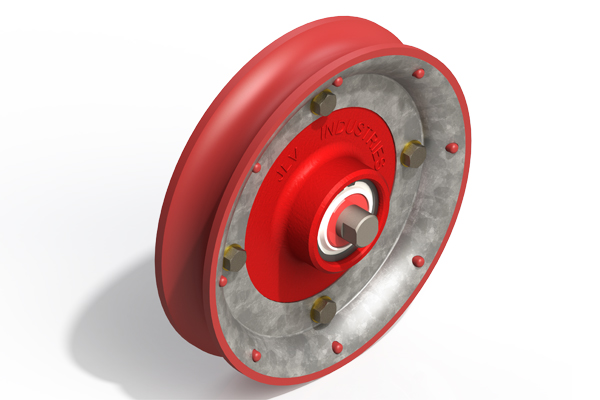

cable belt conveyor pulley

Glideseal Pulleys

Products
cable belt conveyor parts

Noise & Vibration Isolators

Products
cable belt conveyor audits

Engineering Audits

Services

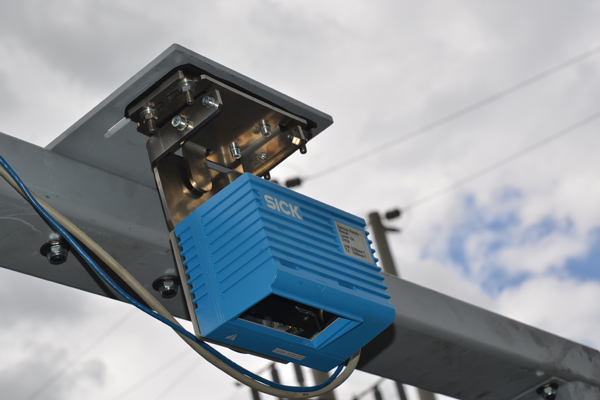

cable belt conveyor monitoring

Onsite Deflection Monitoring

Services
cable belt conveyor rope mainteance

Steel Wire Rope Maintenance

Services

If you need assistance with your Cable Belt Conveyor, we are the experts

Contact us today to see how we can help you resolve your problems and increase your efficiency

DOWNLOAD BROCHURE

Are you completing a feasibility study?

Complete our cable belt conveyor system design form and we can tell you if a cable belt conveyor system is suited to your application

NEW SYSTEM DESIGN FORM
